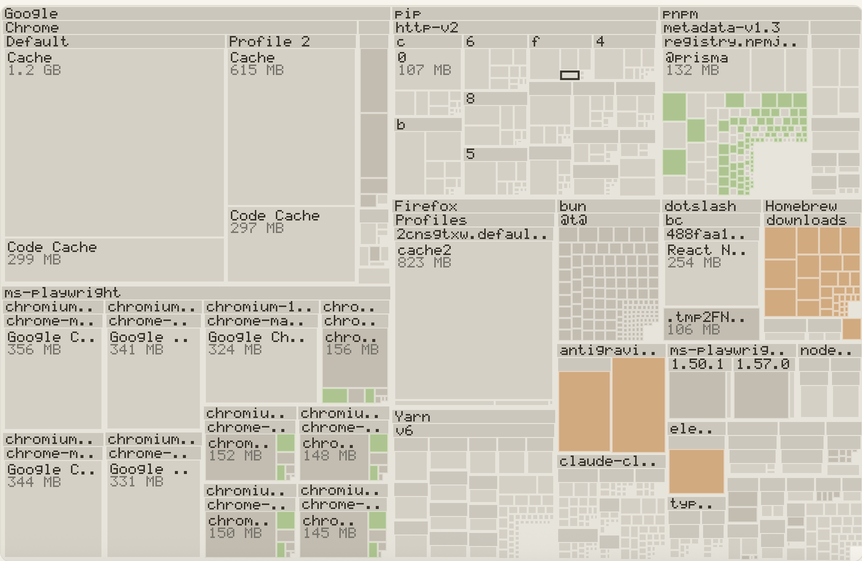

Treemap
Squarified, so tiles stay near-square and areas stay comparable at a glance.
This folder reports 460 GB.
It is using thirty-three.
Every disk analyzer adds up the size each file claims. Filesystems stopped storing files that way years ago. Plumb measures the blocks that genuinely come back when you delete something.
macOS and Linux. 3.6 MB. Apache-2.0.
33.10 GB actually there460.91 GB reported by every tool that sums file sizes
plumb scan ~/Library/ContainersWhere 428 gigabytes go missing
Four mechanisms break the naive sum, and all four are ordinary. You do not have to do anything unusual to hit them. Most tools model none of them. Plumb models all four, on macOS, Linux and Windows.
- Hardlinks
- One file, several names. The filesystem stores its blocks once; every tool that sums the size of each name counts them once per name. Delete one name and you free nothing at all.
- Copy-on-write clones
- On APFS, copying a file writes no data. The copy reports its full length and shares every block with the original until one of them is edited. Time Machine’s local snapshots are built the same way.
- Sparse files
- A container disk image advertises the size it may one day reach and occupies only what it has written. This is where the 461 GB above comes from, and 428 GB of it does not exist.
- Snapshots
- Blocks a snapshot still references survive the file that referenced them. You can delete something, watch it disappear, and see no change in free space until the snapshot expires.
Three commands, and you can check it yourself
A 50 MiB file, a second name for the same file, and a separate 10 MiB file. The apparent size is 110 MiB. The disk is holding 60. This exact fixture runs on Windows, Linux and macOS in continuous integration on every commit, because it is the whole thesis in one assertion.
$ dd if=/dev/zero of=big.bin bs=1m count=50 $ ln big.bin hard.bin # a second name, not a second file $ plumb scan . logical 110.00 MB allocated 60.01 MB freeable 60.01 MB <- what deleting actually frees shared 1 entries share blocks with another path # du -sk agrees: 61452 KiB.
Eight ways to look at the same tree
Every view can be sized by reclaimable bytes, allocated bytes, or logical bytes. Switching between them is the fastest way to see the gap this project exists to measure. All eight are rasterized in Rust and drawn as a single image, which is why a quarter of a million nodes stays interactive.

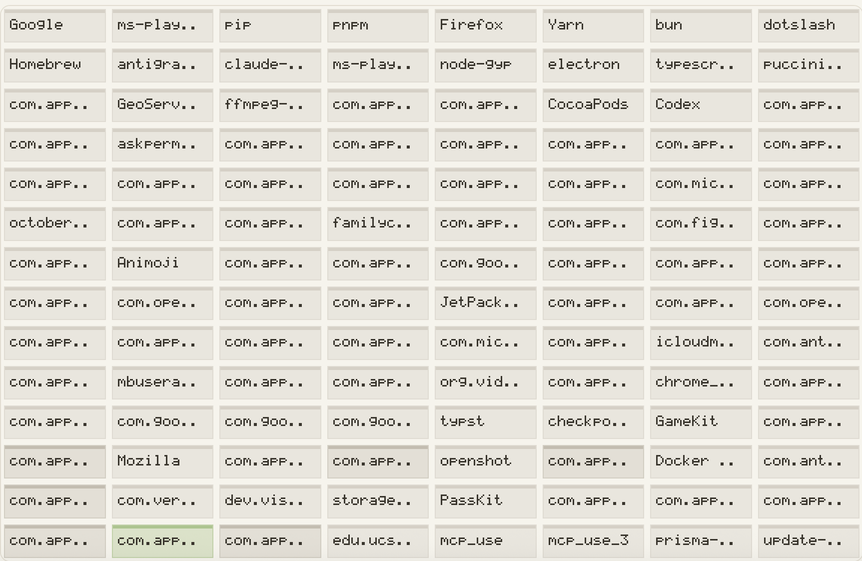

Folders
Plain nested rectangles, one level at a time, for when the treemap is too dense to read.

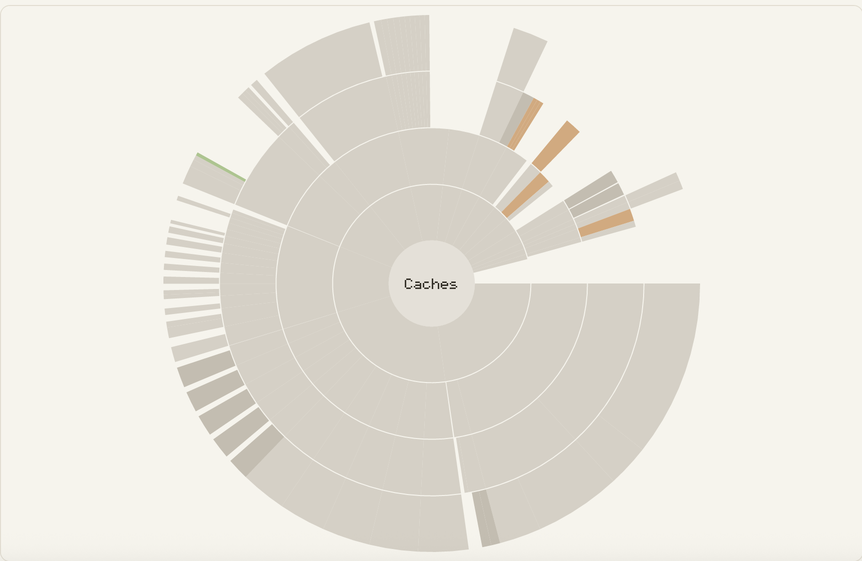

Sunburst
Radial. Depth reads as distance from the centre, which keeps deep trees legible.

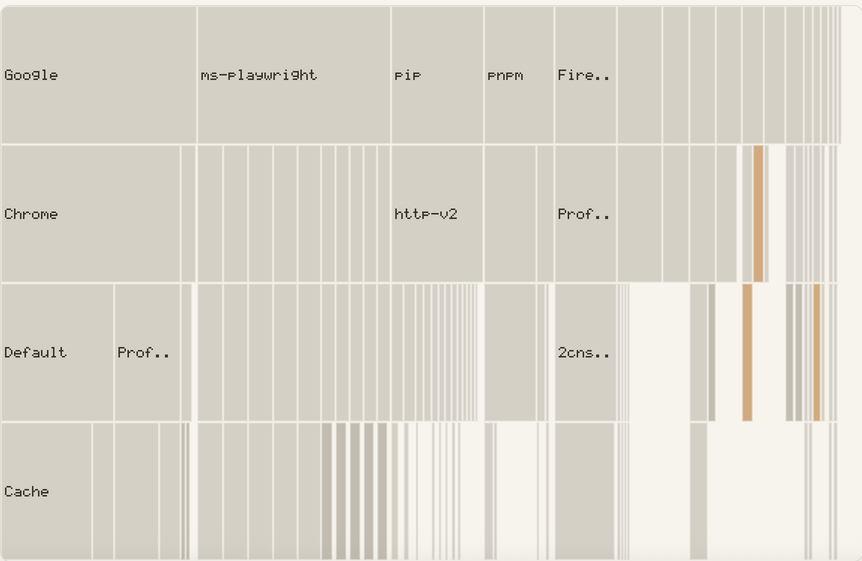

Flame
An icicle layout. The fastest way to find one deep, expensive path.

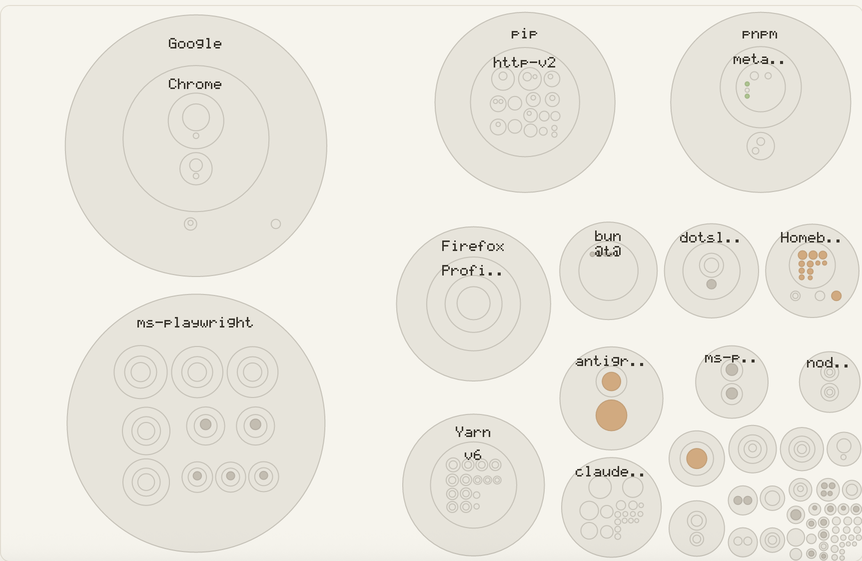

Bubbles
Circle packing. Emphasises count and clustering rather than exact area.

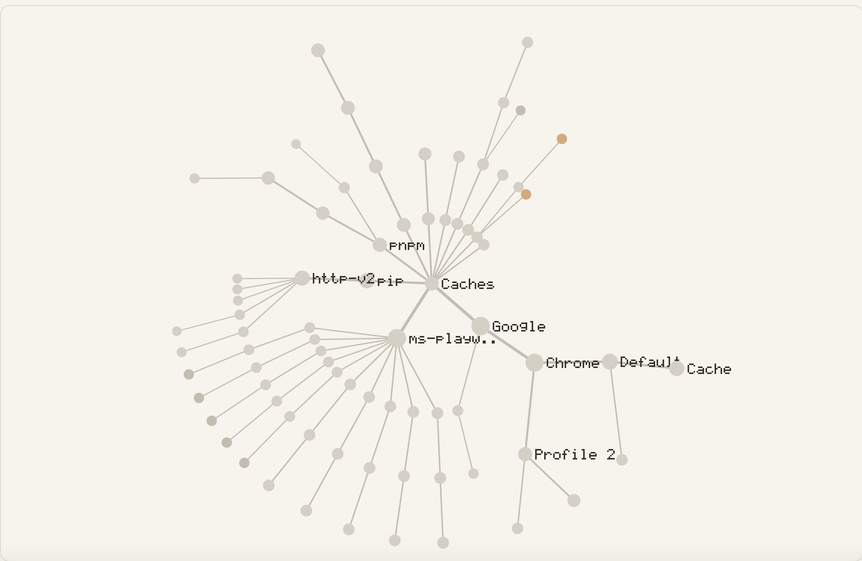

Mind map
A radial tree. Shows how a directory is shaped, not how large it is.

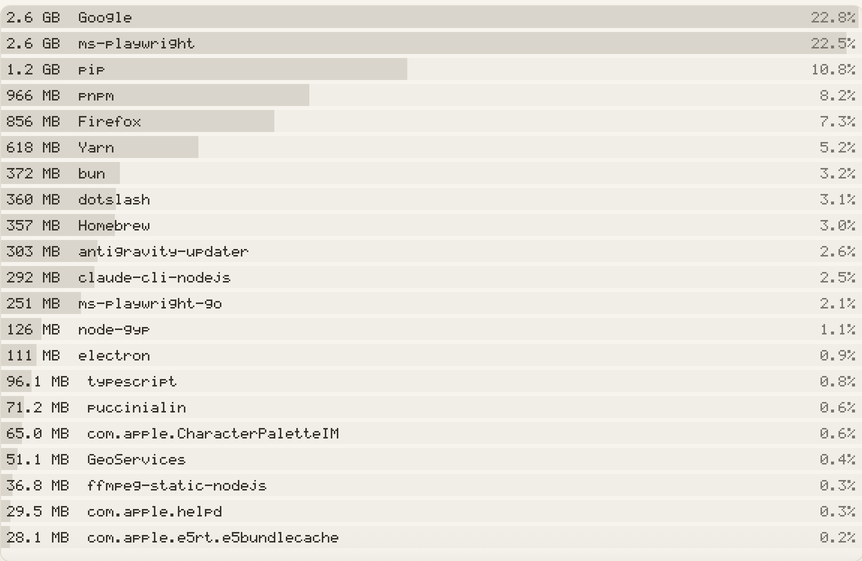

Top sizes
A ranked list, scoped to here, to files anywhere, or to folders anywhere.

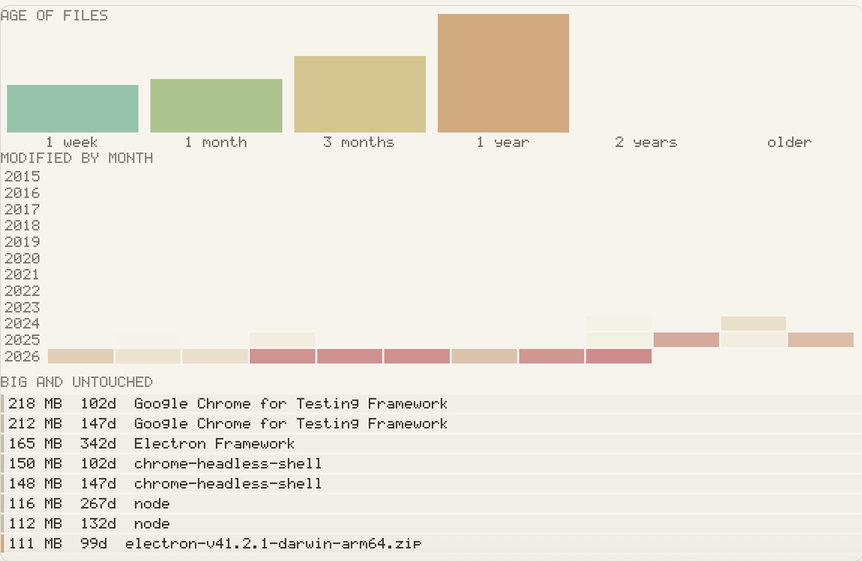

Age map
Coloured by last-modified age. Old and large is the best cleanup signal there is.
Nothing is deleted until you say so
This tool moves files, so the safety model is not a footnote. It is four steps, and you can stop after any of them.
plumb cleanstages. It does not delete.Selected paths are renamed into a private staging directory on the same volume, so the move is atomic and costs no extra space. If no same-volume staging directory can be made, the item is refused. There is no fallback that copies, and none that deletes.
The manifest is written before the first file moves.
It records every item’s original path, its staged path, its size, and its (device, inode, mtime) identity. A crash at any point afterwards leaves something that can still be undone.
plumb restoreputs everything back.One command, one manifest, everything returned. Restore never clobbers: if something now occupies the original path, that item stays staged and stays listed rather than overwriting whatever is there.
plumb commitis the only thing that deletes.It is the single function in the project that removes anything, and it refuses any path outside a staging directory. That check is a runtime gate compiled into release builds, not a debug assertion. It is the last thing standing between a path-handling bug and your home directory.
Nothing is ever deleted except by commit, and everything commit can delete is described by a manifest that was written to disk before the first file moved.
Download Plumb
Version 0.2.0. Free and open source under Apache-2.0.
No account, no telemetry, no installer that phones home. A single binary and a manifest it writes before it moves anything.
macOS, Apple Silicon
macOS, Intel
Linux, x86_64
Windows
Or build from source
Works on every platform, including Windows, and produces no quarantine flag.
$ git clone github.com/Karanjot786/Plumb $ cd Plumb $ cargo install --path crates/plumb-cli # installs `plumb` $ plumb scan ~/Downloads
macOS refuses to open the app the first time
There is no Apple Developer signature on the app, because notarization costs $99 a year and this project does not have it. Once:
- Right-click the app and choose
Open. - Choose
Openagain in the dialog that follows.
For the command line tool, clear the quarantine flag instead:
xattr -d com.apple.quarantine ./plumb
Is an unsigned binary acceptable for a tool that moves files?
That is a fair objection. If the trade is not acceptable to you, build from source: the result carries no quarantine flag, and every line that can move a file is in the four-step safety model above.
What has been verified on each platform?
| Platform | Engine and CLI | Desktop app | Applications tab |
|---|---|---|---|
| macOS | Verified by running | Verified by running | Yes |
| Linux | Verified by running | Builds and launches | No |
| Windows | Runs in CI on real NTFS | Never launched | No |
The Applications tab reads macOS bundles and the files they scatter through your Library. Windows application discovery is not written, so the tab does not appear there.
